4G/5G/ private network synchronization module

4G/5G/ private network synchronization module

    The synchronization module can automatically complete cell search and wireless signaling processing of TD-LTE(4G synchronous module)/5G NR(5G synchronous module) wireless network, get accurate TDD upstream and downstream time slot, upstream and downstream time slot ratio and other information, and output the upstream and downstream time slot indicator signal through GPIO interface, the module interface is standard Mini PCIE.The 4G synchronization module supports the function of TD-LTE data card, which can realize the data transmission function of 4G Internet.The frequency band supported by the private network synchronization module can be customized according to the demand.

Product Details




4+5G

 Syn

Mod


Parameter

Define

Band

4G TD-LTE:B3/B8/B34/B39/B40/B41(Sub6G Other frequency bands can be customized );

5G NR FR1:N39/N40/N41/N77/N78/N79(Sub6G Other frequency bands can be customized );

5G NR FR2 To achieve frequency conversion from the millimeter-wave band to the Sub-6GHz band, an external frequency converter is required.


receiver sensitivity(dBm)

-94

Power Draw(W)

1.2

Supply(V)

3.3

Temperature(V)

-30-70

Size(mm)

51 x 30 x 3.5


Model

Define

HR-TD-05AF1

support 4G TDD band and 5GNR FR1 band

HR-TD-05A-BB

support 5GNR FR1 band,The 5G NR baseband signal is input through the digital pin

HR-TD-05A-T1

support 4G TDD band and 5GNR FR1 bandAnd through the TDD IO pin output TDD time slot signal to the timing module

HR-TD-05B-B2

Multi-band synchronization is supported for 4G+5G, and bands with 3 TDDS and 2 FDDS are supported


模塊型號(hào)

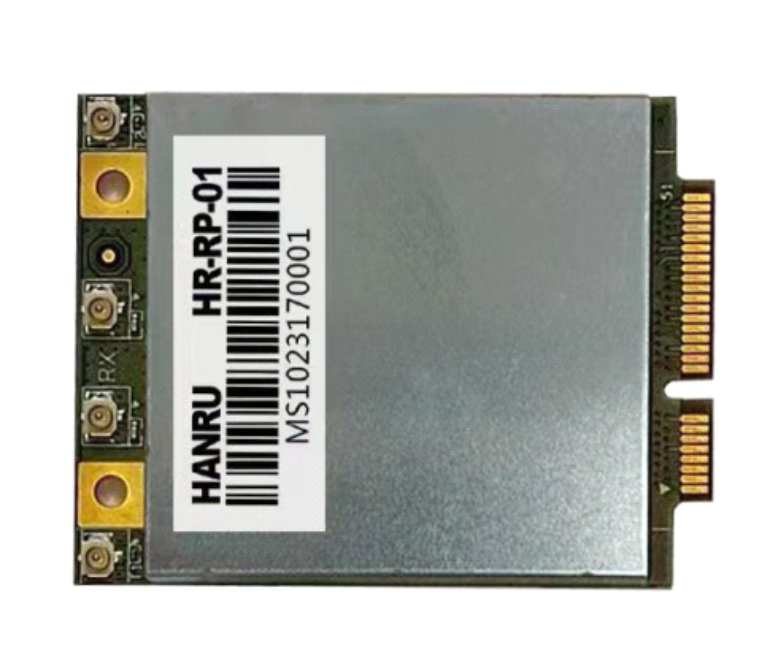

Repeater Module

ParameterDefine
interface
Mini-PCIE 52pin
BandSub6G
Rx PortIPEX Receptacle
Rx Channel2R2T
Supply(V)DC 3.3V
Size(mm)51mmx 39mm x 3.5mm


Functionsync moduleRepeater Module
4G sync module

5G sync module

20M~100MBandpass digital filtering
2R2Tfrequency-shift
Wireless link self-excitation detection and control
Uplink traffic statistics
Room division wireless monitoring channel and AFC


Measurement of loss and length of feeder line




Mobile: +86-13600975566For more information or to order products, please contact Xiamen Hejiaxing Sales Office.

WeChat:13600975566

QQ: 2355620732

Mail:zf@hjx.cn
